Double Pulley – XP22 – Swivel

New

ELLERsafe XP22 Double Pulley – Swivel

Lightweight aluminium double pulley with swivelling side plates, locking mechanism, and integrated swivel. Suitable for ropes up to 12mm. MBS: 24kN. Weight: 445g. Complies with EN12278.

Benefits:

Functionality: Lockable side plates and swivel for controlled handling.
Efficiency: Large disc diameter for high-performance rope systems.
Safety: 24kN MBS and EN12278 certified.

SKU: ELSF-XP22

Categories: Hardware/ Pulleys

Description

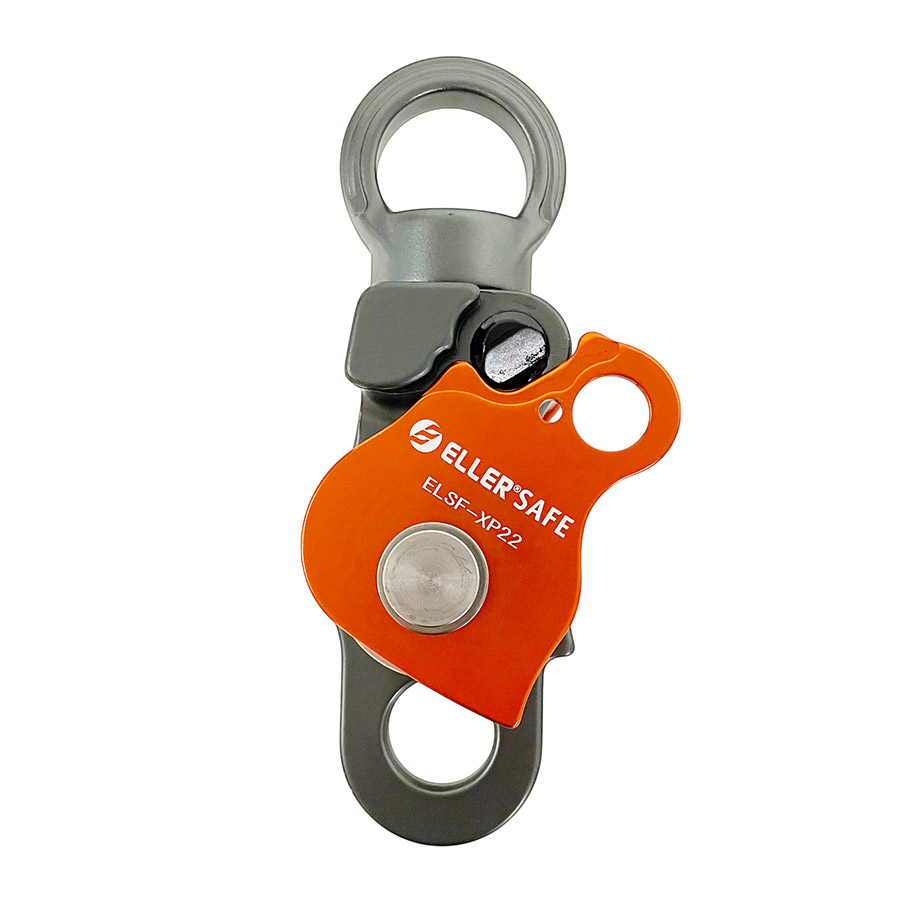

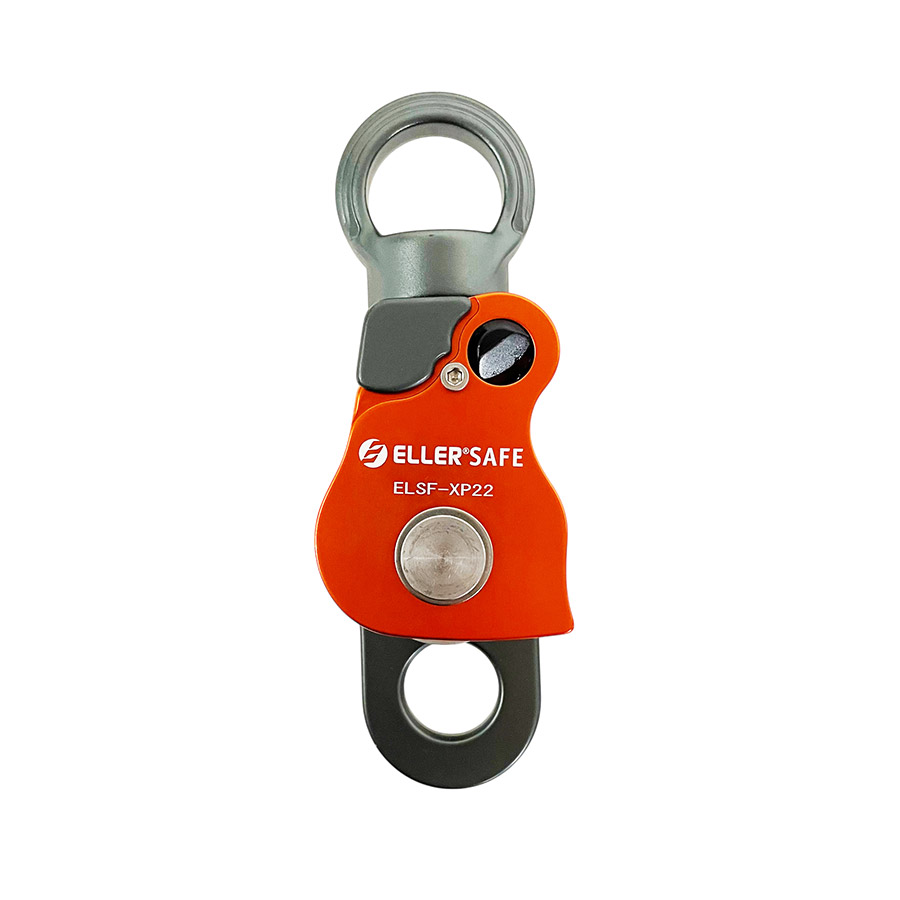

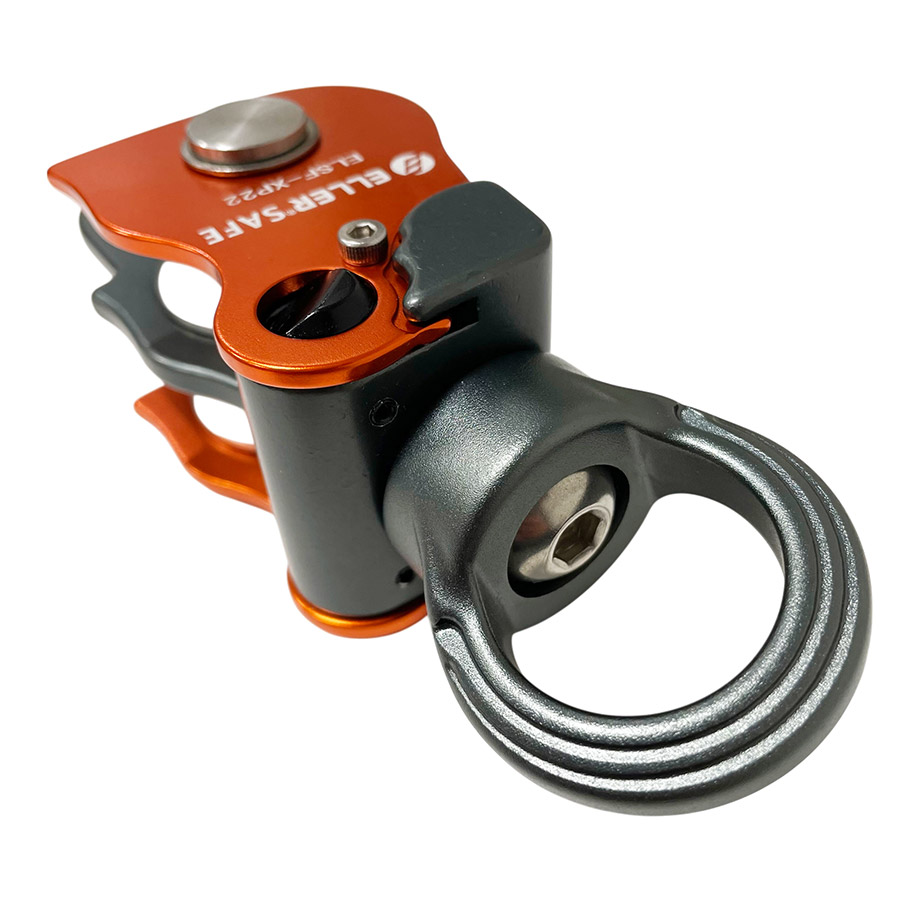

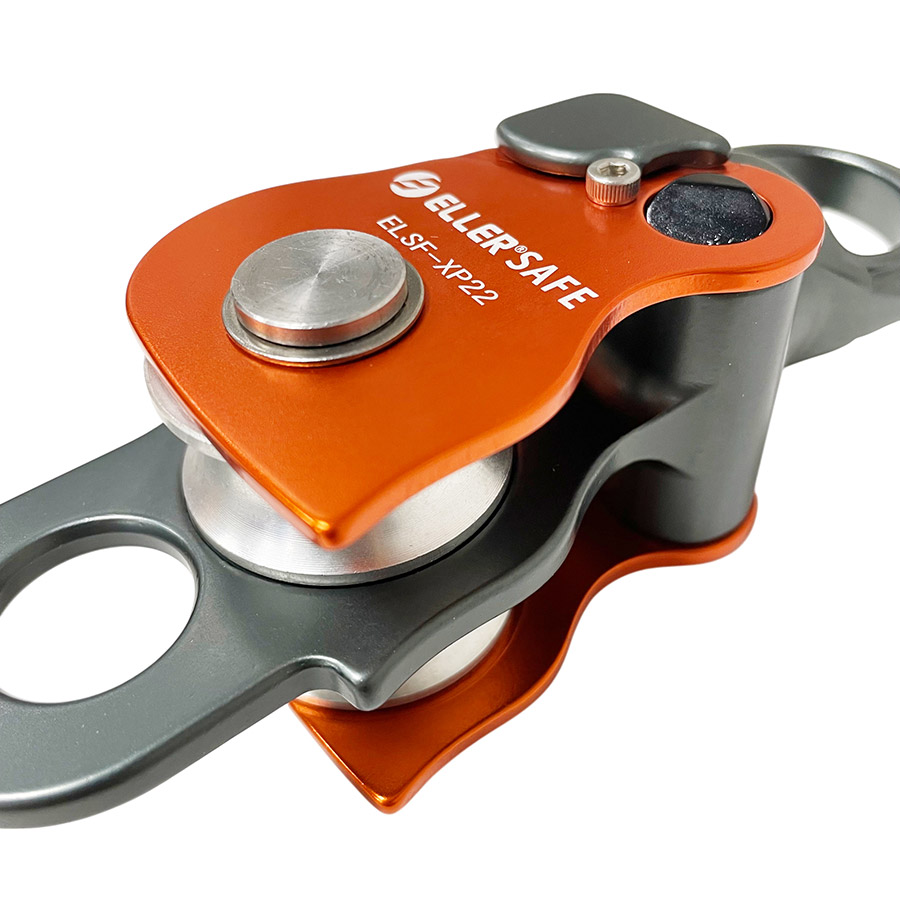

ELLERsafe XP22 double pulley – swivel
Aluminium pulley equipped with swivelling side plates with locking mechanism for easy installation

The ELLERsafe XP22 double pulley is made of lightweight aluminium and features swivelling side plates with locking mechanism, which facilitates rope installation and removal. In addition, the pulley is equipped with a swivel mechanism. Suitable for ropes with a maximum diameter of 12mm, this pulley offers a Minimum Breaking Strength (MBS) of 24kN. Weighing only 445g, it is portable and convenient to use.

Due to the large diameter disc, this pulley has high efficiency, which is of great benefit in large rope systems. Best combined with an oval carabiner, such as the ELLERsafe CA-OVAL carabiner.

The ELLERsafe XP22 double pulley complies with the EN12278 standard.
